| Weight: | 0.26 Kg |
| Made in: | Czech Republic |
| Made of: | electronic |
| Operating voltage: | 35V DC |
Recommended for motorcycles that use VAPE ignition 6V or 12V without accumulator.

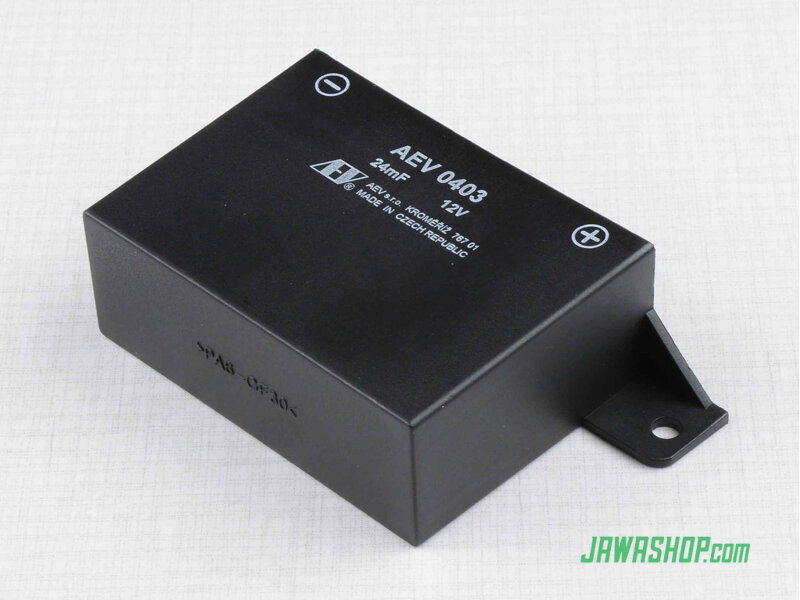

Important: The AEV 0403 condenser has a different polarity of the connection contacts as well as the battery where it will be connected. It must not be reversed!
Detailed description:
Nowadays, JAWA and ČZ motorcycles are increasingly being used, mainly as a replacement for dynamo-battery sets, ignition and source sets, whose basic part is a permanent magnet alternator. These new kits are characterized in that the ignition and source parts are completely independent of each other and the ignition function is therefore not conditioned by the presence of an accumulator. Therefore, some manufacturers allow the operation of these kits without a battery, but at the same time recommend to connect the battery instead of the motorcycle electrolytic capacitor with a capacity of 22 ÷ 47mF (22 000 ÷ 47 000uF) with operating voltage at least 25V , see. eg recommendations from VAPE. This is because the DC output voltage from the regulator, after rectifying the alternator voltage, especially the single-phase, has a very high ripple factor, and at the same time there is a wide range of voltage pulses that arise during regulator operation or are induced from the ignition circuit. Therefore, if the battery or capacitor of the corresponding capacity is not connected to the mains, this condition will significantly affect the operation of some appliances or may even damage them.
UPS Express from 33.95 USD
DHL Express Worldwide from 45.60 USD
Czech post - small package (up to 2kg) from 15.65 USD
Czech Post - non-priority mail from 22.00 USD
Czech Post - priority mail from 41.90 USD
This spare part can be used on following motorcycles.
- CZ 125 type 453 Kyvacka (1960 - 1969)
- CZ 125 type 473 Sport (1962 - 1969)
- CZ 125 type 476 Sport (1967 - 1977)
- CZ 125 type 488 Sport (1982 - 1985)
- CZ 175 type 450 Kyvacka (1960 - 1969)
- CZ 175 type 470 Sport (1962 - 1969)
- CZ 175 type 477 Sport (1969 - 1977)
- CZ 175 type 487 Sport (1982 - 1985)
- CZ 175 type 501 scooter (1957 - 1960)
- CZ 250 type 455 Kyvacka (1961 - 1965)
- CZ 250 type 471 (1974 - 1981)
- CZ 250 type 475 Sport (1962 - 1965)
- CZ 350 type 472 (1976 - 1989)
- Jawa 250 type 11 Perak (1946 - 1954)
- Jawa 250 type 353 Kyvacka (1954 - 1962)
- Jawa 250 type 559 Panelka (1962 - 1974)
- Jawa 250 type 590 Sport (1965 - 1970)
- Jawa 250 type 623 Bizon (1970 - 1972)
- Jawa 350 type 18 Perak (1948 - 1956)
- Jawa 350 type 354 Kyvacka (1954 - 1964)
- Jawa 350 type 360 Panelka (1964 - 1974)
- Jawa 350 type 361 Sport (1965 - 1969)
- Jawa 350 type 362 Californian (1969 - 1973)
- Jawa 350 type 633 Bizon (1970 - 1972)
- Jawa 350 type 634 (1973 - 1984)
- Jawa 350 type 638 (1984 - 1994)
- Jawa 350 type 639 (1984 - 1994)
- Jawa 350 type 640 (1991 - 1998)
- Jawa CZ 125 type 355 Kyvacka (1956 - 1960)
- Jawa CZ 175 type 356 Kyvacka (1956 - 1960)
